Description

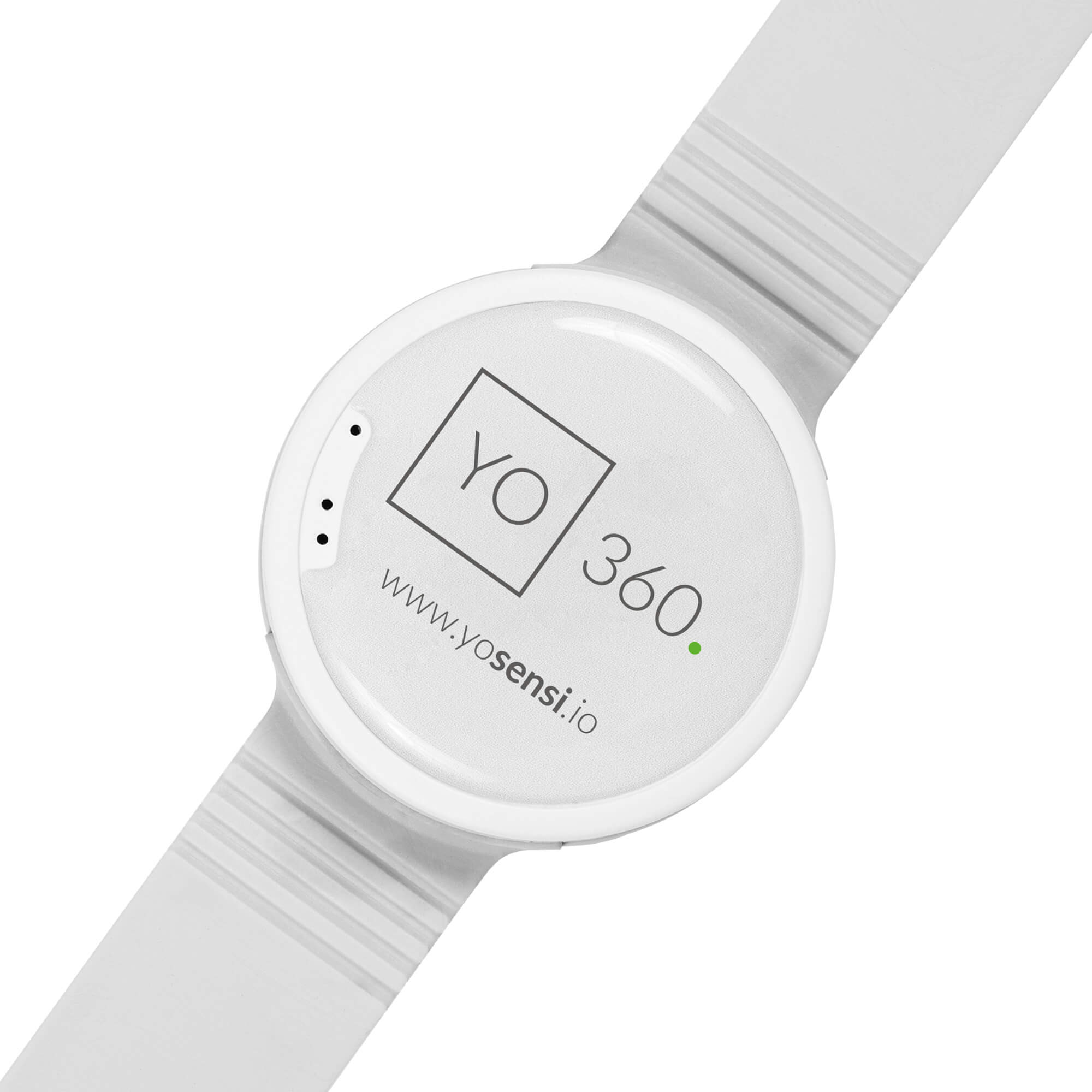

YO 360 measures temperature and humidity, and it sends its own position on the x, y, and z axes (via a built-in accelerometer). Its small size, battery power supply, and wide data transmission range allow the device to be used virtually anywhere. The device is equipped with a lithium battery with a very low level of self-discharge.
YO 360 is a small device operating over LoRaWAN. We are a member of the LoRa Alliance, which is responsible for data transmission security.
Key features
- Small size – only 4.7 cm in diameter!
- Data transmission over distances of more than 3 km over LoRaWAN in medium-density urban spaces
- Lithium battery with very low self-discharge
- Possibility to adjust the enclosure and mounting options
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration via Bluetooth Low Energy 5.0
- Firmware update over BLE
- Yosensi Configuration Web Tool for convenient firmware updates and device configuration
- Wide network coverage and relatively low energy consumption
- High-quality product made in EU

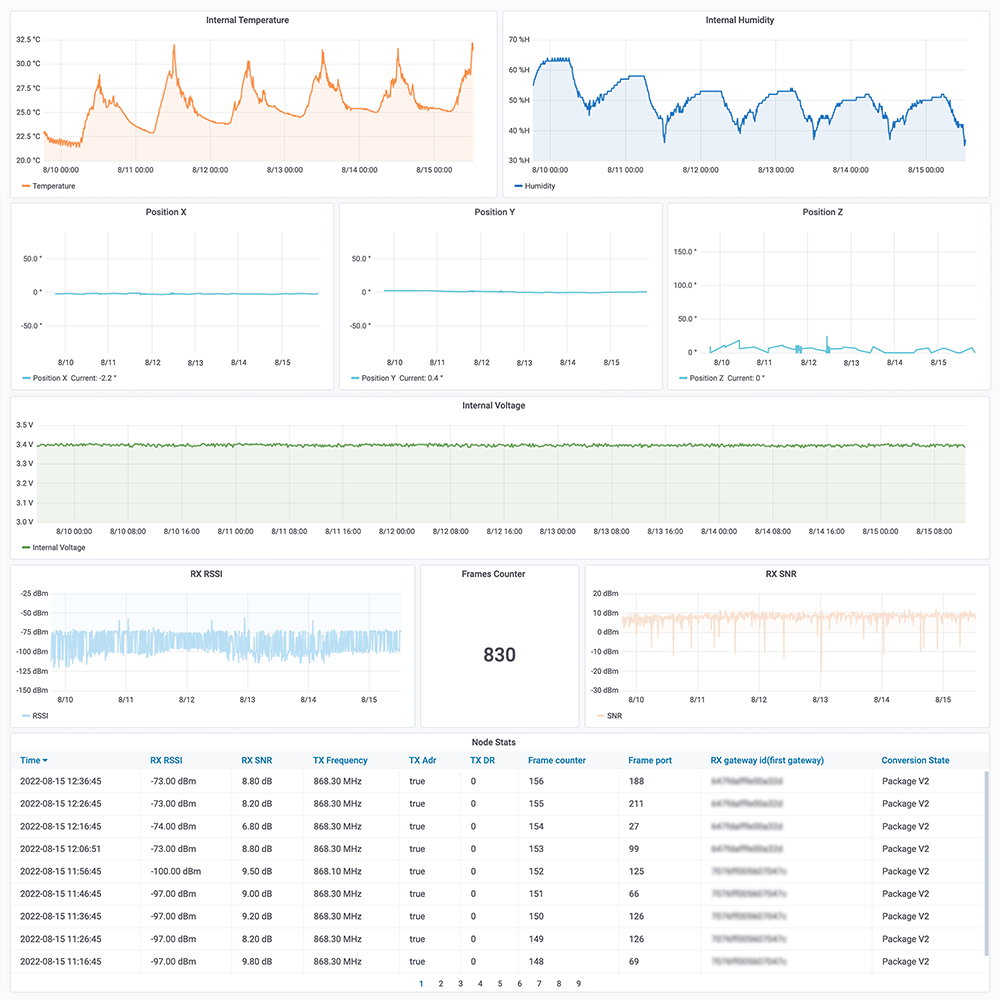

Sample charts of collected data
Parameters
| Tx Power: |
• LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm] |
| Power supply: | • Battery CR2450 3V |
| Power consumption: | • Maximum: 110mA DC (3 V DC) |
| Weight: | • 25 g (with battery) |
Enclosure
| Dimensions: |
• Diameter: 47 mm • Height: 13 mm |
| Colour: |
• White • Black |
| Installation: |

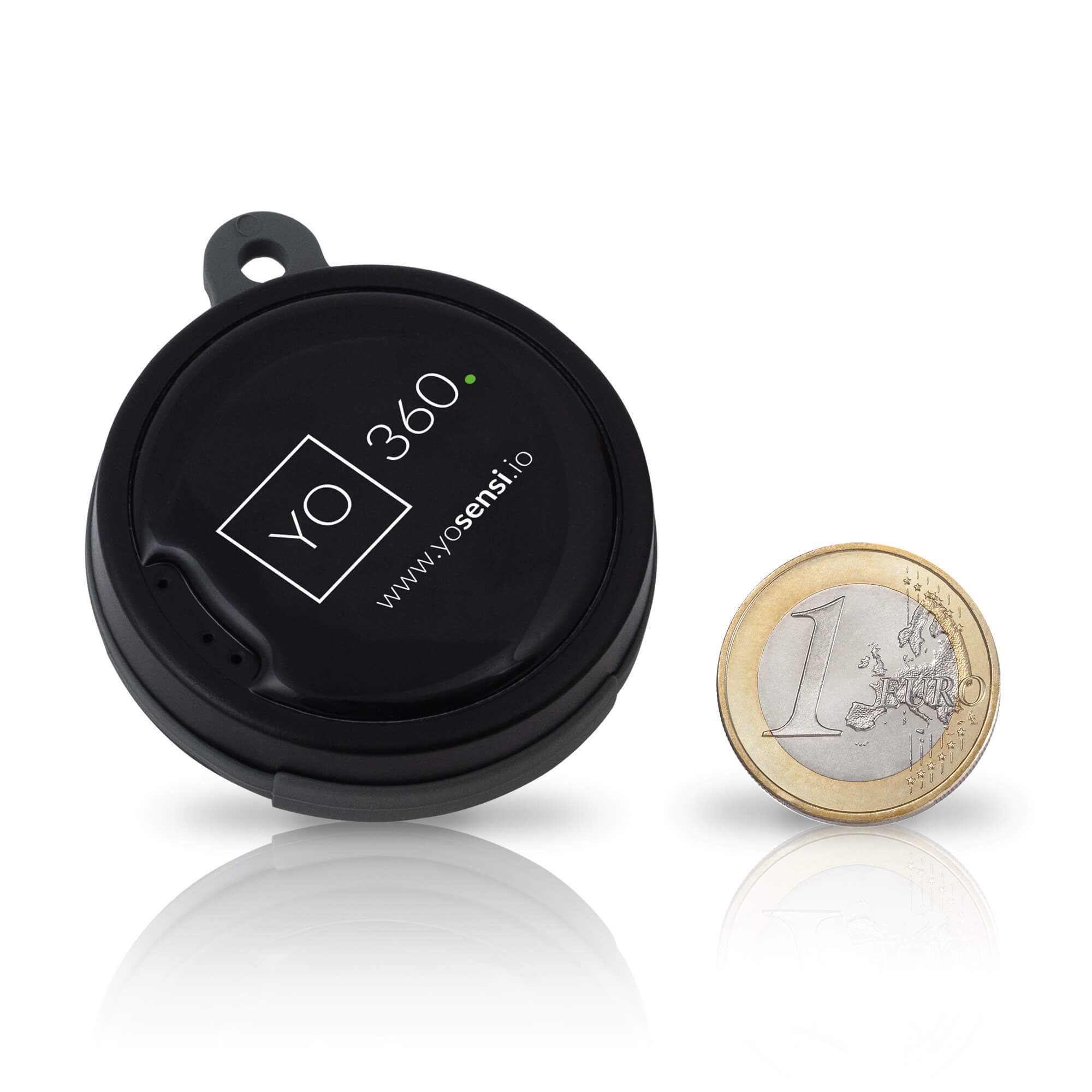

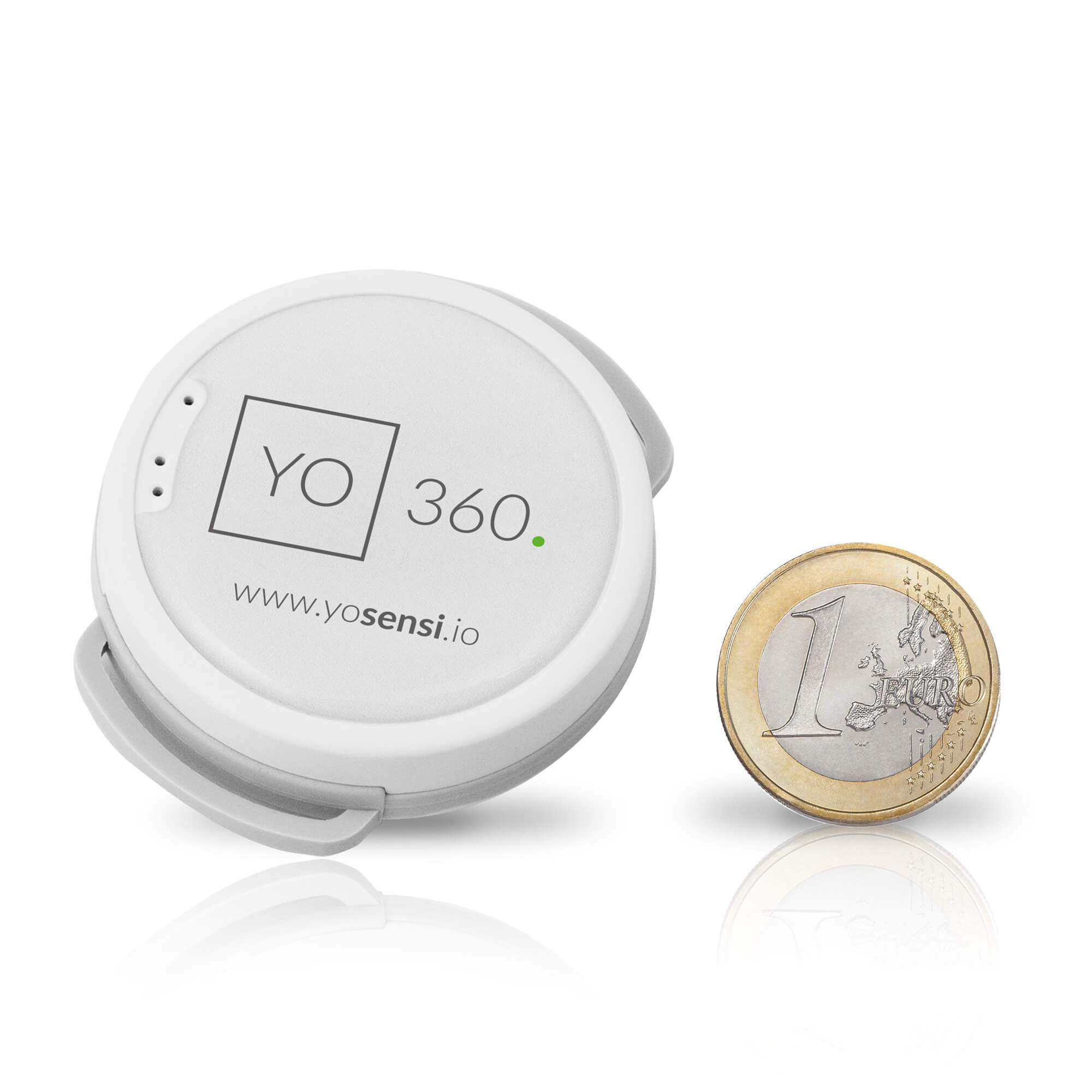

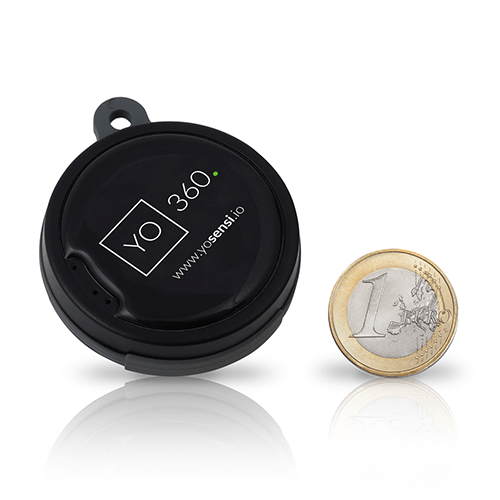

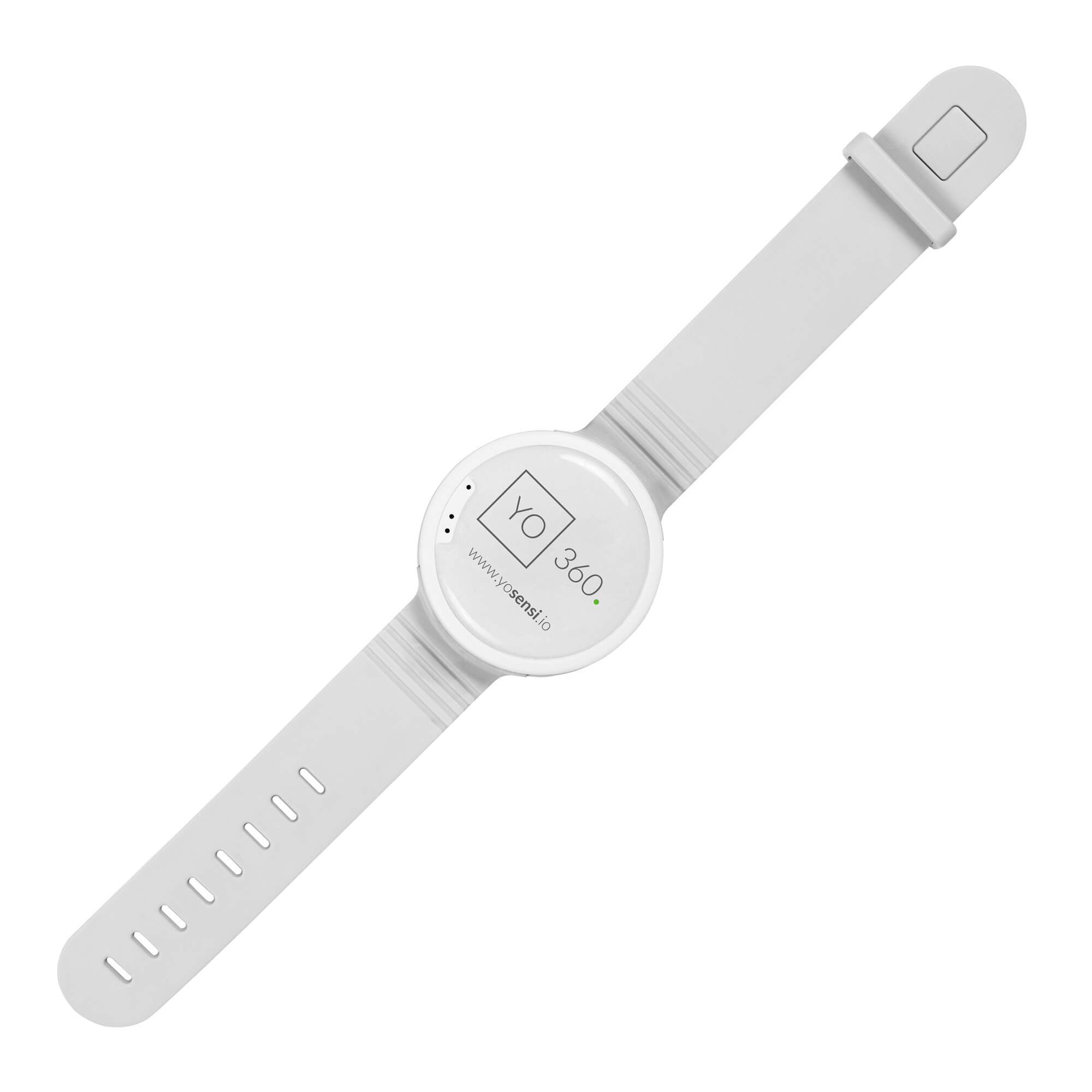

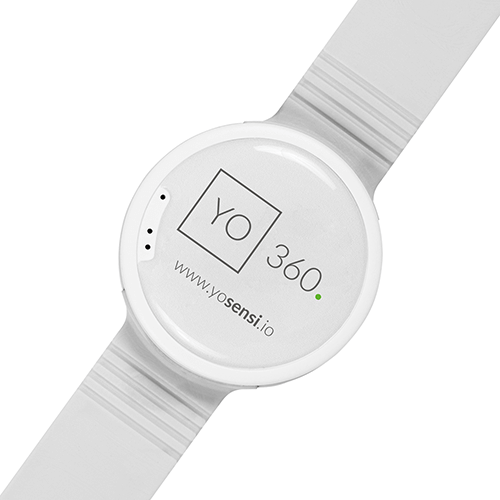

Choose from: • No handles • One handle (mounting hole) • Two oval handles • Strap |
| Enclosure material: | Plastic - ABS |
| Fire resistance class: | No mention |
| Level of protection: |
Choose from: • IP40 |
Sensors Measuring range
Temperature
| Measuring range: | -40°C to 125°C (-40°F to 257°F) |
| Accuracy: | ±0.2°C (32.36°F) (at temperatures between 5°C to 60°C (41°F to 140°F)) |
Relative humidity
| Measuring range: | 0% to 100% |
| Accuracy: | ±2% (at 20% to 80% relative humidity) |
Accelerometer
| Measuring range: | ±180° on x, y, and z axes |
| Accuracy: | ±0.1° (at temperatures between -40°C to 85°C (-40°F to 185°F)) |
